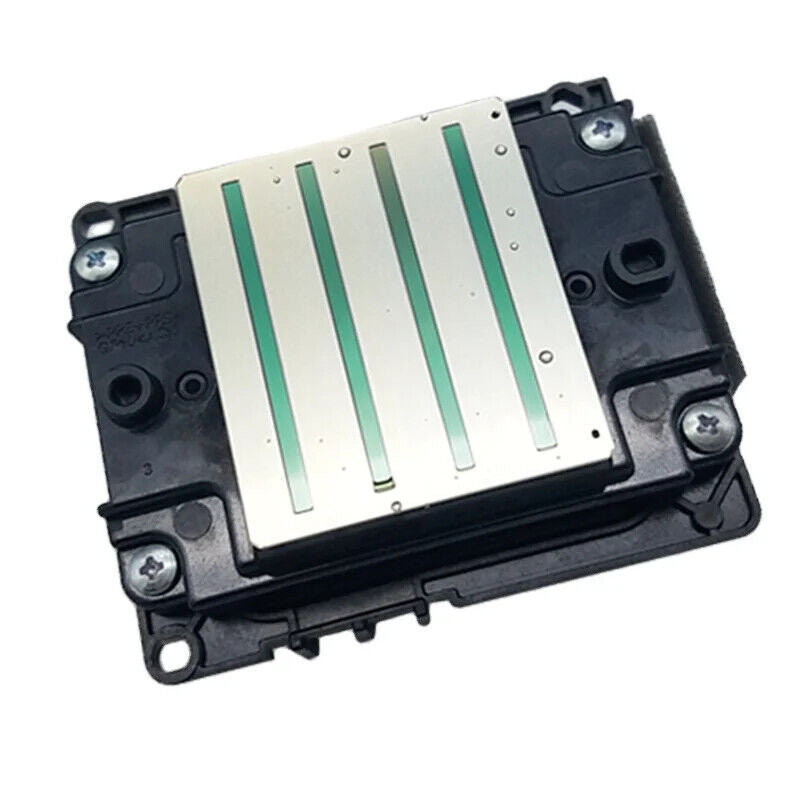

The Epson I3200-A1 Water is a cost-effective 1.33 inch-wide providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for water based inks.
The Epson I3200-A1 Water is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for water based inks. The head included the manifold.
Structurally, the Epson I3200-A1 and Epson I3200-A1 HD prinheads are the same heads, both with 8 rows of 400 nozzles.
But the two heads are absolutely NOT interchangeable, each printer can only run the type of head for which it was designed.
- The Epson I3200 has support for 4 colours, so there are 4 inputs (nipples) on the manifold to which the dampers can be connected, and each colour is emitted by a pair of nozzle rows.
- The Epson i3200 HD has support for 8 colours, so there are 8 inputs (nipples) on the manifold to which the dampers can be connected, and each colour is emitted by a single nozzle row.
Specifications :
- Ink Type : Aqueous
- Type : PrecisionCore MicroTFP printhead
- Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
- Weight : 82g
- Number of nozzle : 3200
- Nozzle pitch/nozzle row : 1/300 inch
- Nozzle rows: 8 rows
- Nozzle Resolution : 300 noi/row 600 npi/2 rows
- Max. number of colour inks : 4 colours
- Effective print width : 33.8 mm (1.33 inches)
-
Droplet ejection performance :
Binary : 6 plat 43.2 kHz
3 levels grey scale : 6.3, 12.3 pl at 21.6 kHz
4 levels grey scale 3.8, 6.1, 9.4 pl at 21.6 kHz - Viscosity range : 3-4 mPa·s
- This printhead carries a manufacturer warranty.
- Country of origin : Japan
